See the world in 20.3 Megapixels.

Reality never looked so real 20.3MP APS-C CMOS Sensor
Samsung has customised the new, 20.3 megapixels APS-C CMOS Sensor to perfectly complement the mirrorless lens system of the Samsung NX200, a feature typically found only in DSLRs. The professional-grade sensor ensures that each individual pixel receives more light. The resulting images are amazingly true to life, with rich, brilliant colours. The sensor also captures Full HD video that maintains higher definition and clarity than ever before.

A camera that’s quick on the draw. High Speed Capture (7fps) and ultra fast AutoFocus (100ms).
Picture perfect moments don’t last long enough. The Samsung NX200’s High Speed Capture capabilities enable you to capture fast moving objects at a sequential rate of 7fps at full resolution, allowing you to capture every movement in incredible detail. An all-new autofocus algorithm, delivers accurate, instantaneous (100ms) autofocus allowing to capture every memory however quickly it happens

See more in lower light  – Wide range ISO (100 ~ 12800)
The right exposure can make the difference between a stunning photo and a forgettable one. But some lighting conditions call for greater sensitivity than most cameras allow. The NX200 lets you shoot as high as 12800 ISO at normal settings. Even in low light, you can take high-speed photos with minimal noise or blurring. When needed, the range can be expanded further so you can maximise the potential of any light available, capturing natural-looking images even indoors or at night.

Discover the true beauty of Full HD video 1080 30p Full HD Movie (H.264)
The NX200’s uncompromising performance isn’t limited to still images. The camera’s 1080 30p Full HD recording capabilities let you create professional-looking videos, and the built-in stereo mic make them sound professional too. An 18 – 200mm lens exclusively for Full HD video produces smooth, dynamic movies with wide zoom capability. When you’re ready for showtime, an HDMI interface lets you transmit your vision straight to the big screen.

Picture performance that meets its design
The sleekly designed NX200 puts the power of a professional-grade camera in the palm of your hand. Every function was designed for easy access and instinctive use. Packing a genuine DSLR-sized sensor and interchangeable lens system into a lightweight, compact body, the NX200 is the ultimate high-performance camera you can carry in your pocket.

Take full control of your pictures i-Function 2.0
The NX200 makes it easy to create spectacular images on the move. Samsung’s unique i-function technology allows you to manually control image capture settings by touching the i-function button on the lens and change the values within this settings with the lens value ring. This allows you to adjust your photo without having to take your eye off the subject and ensure that you capture the perfect shot every time. Updated i-function 2.0 also allows you to customise which settings you can control via the i-function button, so you can make the camera work perfectly with your photography style.

Bring the magic back into your photos and videos
Magic mode (Smart Filter + Magic Frame )
The NX200’s Magic Mode gives you control over special moods and effects that expand your creative palette. Your choice of 10 types of Smart Filters and 12 types of Magic Frames help you create poster-quality visuals without all the work. New special effects include Soft Focus for a warm ambience and Half-Tone Dot for a comic-book look.

3” VGA AMOLED Display
The NX200’s thin and light 3” VGA AMOLED display provides darker blacks and more vibrant colours than a conventional TFT-LCD display, even in direct sunlight. It also responds 3000 times faster, so your images appear almost as quickly as you shoot them, freeing you to move on to the next shot.

Panorama, 3D Panorama, Action Panorama
The NX200’s panoramic capabilities let you capture vast landscapes and dramatic vertical shots at the touch of a button. 3D panorama makes these shots even more impressive by making certain elements jump out of the photo. Action panorama, unique to Samsung, allows you to also capture movement along a sweeping panorama. The background will remain a seamless panoramic shot but will capture the moving object at several stages along its journey, ideal for capturing your child’s race at their first sports day.

DRIMIII DSP (Digital Signal Processor)
One key to the NX200’s stunning images and Full HD video is its advanced image processor. Supporting a sensitivity range of ISO 100 – 12800, DRIM DSP instantly recognises and reduces noise and distortion. That means you don’t need perfect circumstances to get perfect results.

Smart Panel
Advanced capabilities don’t mean much if you can’t find them. The NX200’s user-friendly Smart Panel puts all the most important controls at your fingertips. Accessible by hot key, the intuitive graphical interface ensures that you won’t miss a great shot while you’re fiddling with settings. There is also a hot key to take you directly to movie recording at the touch of a button.

Image Sensor

spec view Image Sensor data
Sensor Type APS-C CMOS
Sensor Size 23.5 x 15.7mm
Effective Pixel Approx 20.3MP
Color Filter RGB Primary Colour Filter

Lens

spec view Lens data
Mount Samsung NX
Usable Lens Samsung Lenses

i-Function

I-Effect: i-Scene (depends on Lens), Smart Filter (Vignetting, Minature, Fish-Eye, Sketch, Defog, Halftone Dot) i-Zoom: (x1.2, 1.4, 1.7, 2.0)

spec view i-Function data

Image Stabilization

spec view Image Stabilization data
Type Lens Shift (Depends on Lens)
Mode OIS Mode1 / Mode2 / OFF

Distortion Correct

spec view Distortion Correct data
Mode LDC On / Off (Depends on Lens)

Dust Reduction

spec view Dust Reduction data
Type Super Sonic Drive

Display

spec view Display data
Type AMOLED
Size 3.0″
Resolution VGA (640 x 480) 614k dots (PenTile)
Filed of View Approx 100%
User Display Grid (4 types), Histgram, Icons: On / Off, Distance Scale: ft / m / Off

Focusing

spec view Focusing data
Type Contrast AF
Mode Single AF, Continuous AF, MF
Focusing point Selection: 1point (Free selection) Multi: Normal 15points, Closeup 35pointsFace Detection: Max. 10 faces
AF-Assist Lamp Yes

Shutter Speed

spec view Shutter Speed data
Type Electronically controlled vertical-run focal plane shutter
Speed Auto: 1/4000sec. ~ 30sec. Manual: 1/4000sec. ~ 30sec. (1/3EV step) Bulb (Limit time: 4min.)

Exposure

spec view Exposure data
Metering System TTL 221 (17 x 13) Block segmentMetering: Multi, Center-weighted, SpotMetering range: EV 0-18 (ISO 100 · 30mm, F2)
Compensation ±3 EV (1/3EV step)
AE Lock Shutter Button half press
ISO Equivalent Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800 (1 or 1/3EV step)* AUTO ISO upper level is selectable. (Less than ISO3200)

Drive Mode

spec view Drive Mode data
Mode Single, Continuous, Burst (5M size only), Self-timer, Bracket (AE / WB / PW)
Continuous JPEG: High (7fps) up to 11 shots, Low (3fps) up to 15 shots selectableBurst: 10, 15, 30fps selectable, 30 shots by 1 releaseRAW : High (7fps), Low (3fps) selectable up to 8 shots
Bracket Auto Exposure Bracket (max ±3EV), WB, PW
Self-Timer 2 – 30sec. (1sec. step)

Flash

spec view Flash data
Type External Flash only (Bundle with SEF8A)
Mode Smart Flash, Auto, Auto+Red-eye reduction, Fill-in, Fill-in+Red-eye reduction, 1st Curtain, 2nd Curtain, Off
Guide Number 8 (at ISO 100) (SEF8A)
Angle of View Coverage 28mm wide-angle (Equivalent to 35mm) (SEF8A)
Sync. Speed Less than 1/180sec.
Flash Compensation -2 – +2EV (1/2EV step)
External Flash Samsung External Flash available (SEF42A, SEF20A, SEF15A: Optional)
Synchro (Flash attachment) Hot Shoe

White Balance

spec view White Balance data
Mode Auto, Daylight, Cloudy, Fluorescent (W, N, D), Tungsten, Flash, Custom, K (Manual)
Micro Adjustment Each 7 steps in Amber / Blue / Green / Magenta axis

Dynamic Range Expansion

Smart Range On / Off

spec view Dynamic Range Expansion data

Picture Wizard

spec view Picture Wizard data
Mode Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom (1 ~ 3)
Parameter Contrast, Sharpness, Saturation, Colour

Shooting

spec view Shooting data
Mode SmartAuto 2.0, Program, Aperture Priority, Shutter Priority, Manual, Lens Priority, Magic, Panorama, Scene, Movie
Scene Mode Beauty shot, Night, Landscape, Portrait, Children, Sports, Close-Up, Text, Sunset, Dawn, Backlight, Fireworks, Beach & Snow, Sound Picture, 3D Photo
Sound Picture JPEG OnlySound Recording Time (Before and after shooting each 5sec or 10sec)
Image Size JPEG (3:2):20.0M (5472 x 3648), 10.1M (3888 x 2592), 5.9M (2976 x 1984), 2.0M (1728 x 1152), 5.0M (2736 x 1824) : Burst mode onlyJPEG (16:9) : 16.9M (5472 x 3080), 7.8M (3712 x 2088), 4.9M (2944 x 1656), 2.1M (1920 x 1080)JPEG (1:1) : 13.3M (3648 x 3648), 7.0M (2640 x 2640), 4.0M (2000 x 2000), 1.1M (1024 x 1024) RAW : 20.0M (5472 x 3648)
Quality Super fine, Fine, Normal
RAW Format SRW
Color Space SRGB, Adobe RGB
Magic Frame (Magic Mode) Old Album, Old Film, Wave, Full Moon, Old Record, Magazine, Sunny Day, Classic TV, Wall Art, Holiday, Billboard 1, Billboard 2, Newspaper
Smart Filter (Magic Mode) Vignetting, Miniature, Fish-Eye, Sketch, De-fog, Halftone Dots, Soft Focus, Old Film1, Old Film2, Negative

Image Play

spec view Image Play data
Type Single image, Thumbnails (3 / 15 / 40 images), Slide show, Movie
Smart Filter Miniature, Soft Focus, Old Film1, Old Film2, Halftone Dots, Sketch, Fish-Eye, De-fog Negative JPEG (3:2) : 5.9M (2976 x 1984), 5.0M (2736 x 1824), 2.0M (1728 x 1152) JPEG (16:9) : 6.2M (3328 x 1872), 4.9M (2944 x 1656), 2.1M (1920 x 1080) JPEG (1:1) : 6.0M (2448 x 2448), 4.0M (2000 x 2000), 1.1M (1024 x 1024)
Editing Smart Filter, Red-eye fix, Backlight, Resize, Rotate, Face Retouch, Brightness, Contrast, Vignetting

Movie Clip

spec view Movie Clip data
Format MP4 (H.264)
Compression Movie: H.264 , Sound: AAC
Mode Program, Aperture Priority, Shutter Priority, Manual
Recording With Audio or without Audio (user selectable, recording time: 25 minutes)
Frame Rate 60fps (1280 x 720 Only), 30fps
Image Size 1920 x 1080, 1280 x 720 , 640 x 480, 320 x 240 (Default: 1920 x 1080)
Movie Editing Still Image Capture, Time Trimming
Sound Stereo
Smart Filter Vignetting, Miniature, Fish-Eye, Sketch, De-fog, Halftone Dots, Soft Focus, Old Film1, Old Film2, Negative
Multi-Motion Recording X0.25 (640, 320 only), x0.5 (1280, 640, 320 only), x5, x10, x20
Quality High Quality, Normal

Storage

spec view Storage data
Media SD, SDHC, SDXC (guarantee up to 128GB)
File Format RAW (SRW), JPEG (EXIF 2.21), DCF, DPOF 1.1, PictBridge 1.0
Capacity (1GB) 20M: RAW 1720M (3:2) : Super Fine 94, Fine 185, Normal 27210.1M (3:2) : Super Fine 192, Fine 368, Normal 5305.9M (3:2) : Super Fine 318, Fine 593, Normal 8342M (3:2) : Super Fine 827, Fine 1393, Normal 1806Burst (5.0M) : Super Fine 371, Fine 685, Normal 95416.9M (16:9) : Super Fine 116, Fine 227, Normal 3337.8M (16:9) : Super Fine 246, Fine 467, Normal 6654.9M (16:9) : Super Fine 379, Fine 699, Normal 9722.1M (16:9) : Super Fine 799, Fine 1354, Normal 176213.3M (1:1) : Super Fine 147, Fine 284, Normal 4137M (1:1) : Super Fine 272, Fine 513, Normal 7284M (1:1) : Super Fine 454, Fine 823, Normal 11301.1M (1:1) : Super Fine 1344, Fine 2062, Normal 2508Movie : 1920 x 1080 30p : High Quality 8m 54s, Normal 10m 16s 1280 x 720 60p : High Quality 8m 21s, Normal 9m 32s 1280 x 720 30p : High Quality 14m 47s, Normal 16m 37s 640 x 480 30p : High Quality 37m 16s, Normal 43m 14s 320 x 240 30p : High Quality 119m 57s, Normal 145m 49s※ These figures are measure under the Samsung standard.

Languages

17 Languages (Korean, English, Danish, German, Dutch, Swedish, Spanish, Italian, Czech, French, Portuguese, Polish, Finnish, Russian, Norsk, Simplified / Traditional Chinese)

spec view Languages data

Direct Print System

spec view Direct Print System data
PictBridge PictBridge

GPS

spec view GPS data
Type Geo-tagging w / Optional GPS Module (WGS84)
Function -Location Name (OSD) (English and Korean only) -Google Map Link (with intelli-Studio)

Interface

spec view Interface data
Digital Output Connector USB 2.0 (HI-SPEED)
Video Output NTSC, PAL (user selectable) HDMI 1.4a (1080i, 720P, 576P / 480P)

Power

spec view Power data
Power Source Type Rechargeable battery : BP1030B (1030mAh) Charger: BC1030
Battery 160min / 320shots (CIPA Standard)

Physical Specification

spec view Physical Specification data

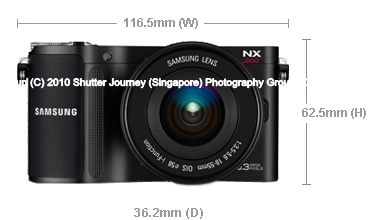

Dimension Dimension (WxHxD) 116.5 x 62.5 x 36.6mm (excluding the projection part)
Weight 220.4g (without battery and memroy card)
Operating Temperature 0 ~ 40°C
Operating Humidity 5 ~ 85%

S/W and PC OS

spec view S/W and PC OS data
Bundle PC S/W Intelli-studio 3.0, Samsung RAW Converter 4, Adobe Reader

System Requirement

spec view System Requirement data
Windows General PC with processor better than Intel Pentium III 500MHz (Intel Pentium 800MHz or higher recommended) Windows XP / Vista / 7 Minimum 256MB RAM (512MB or more recommended) 250MB of available hard disk space (1GB or more recommended) USB portCD-ROM drive 1024 x 768 pixels, 16-bit colour display compatible monitor (24-bit colour display recommended) Microsoft Direct X 9.0c or later
  Intelli-Studio 3.0 Windows XP SP2 / Vista / 7 Intel Core 2 DuoTM 1.66GHz or higher / AMD Athlon X2 Dual-Core 2.2GHz or higherMinimum 512MB RAM (1GB or more recommended) 250MB of available hard disk space (1GB or more recommended) 1024 x 768 pixels, 16-bit colour display compatible monitor (32-bit colour display recommended) USB 2.0, Microsoft DirectX 9.0c or laternVIDIA Geforce 7600GT or higher / ATI X1600 series or higher# 64-bit editions of Windows XP / Vista / and 7 are not supported
  Samsung RAW Converter 4 Windows XP / Vista / 7 Intel Pentium, AMD Athlon Processor(Intel Pentium 4, AMD Athlon XP or later recommended)* Multi-core processor ready (Intel Core i7, Core 2 Quad, Core 2 Duo, AMD Phenom II X4, Phenom X4, etc.) 1GB or more RAM recommendedMinimum 100MB of available hard disk space1024 x 768 pixels, Full colour (24-bit or higher) colour display compatible monitor
Macintosh General Power Mac G3 or laterMac OS 10.4 or later Minimum 256MB RAM (512MB or more recommended) Minimum 110MB of available hard-disk spaceUSB portCD-ROM drive
  Samsung RAW Converter 4 Mac OS X v10.6 / v10.5 / v10.4Power PC / Intel Processor-based or compatible computer (Core 2 Quad or later recommended) 1GB or more RAM recommendedMinimum 100MB of available hard disk space 1024 x 768 pixels, 24-bit colour display compatible monitor
